HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W 1930 (JL686B)

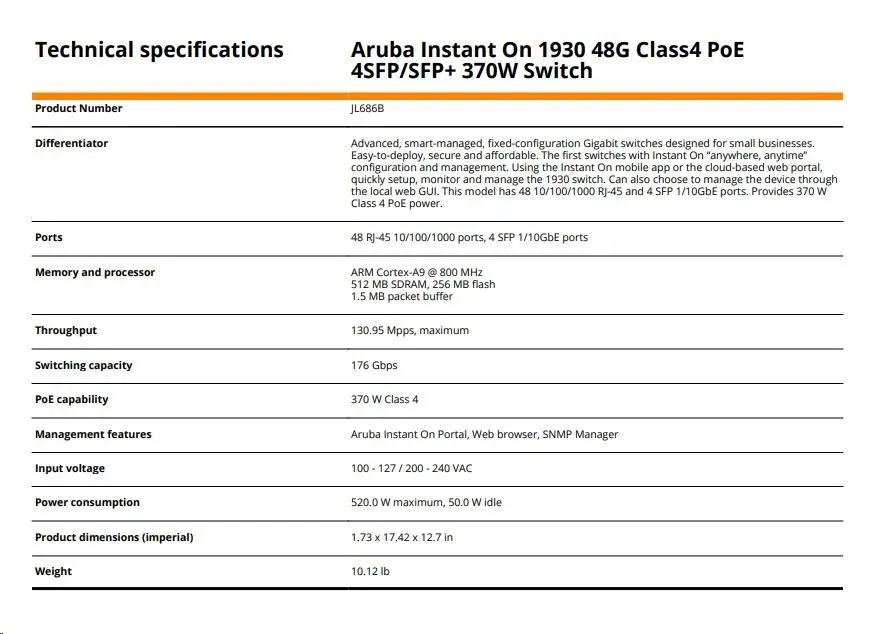

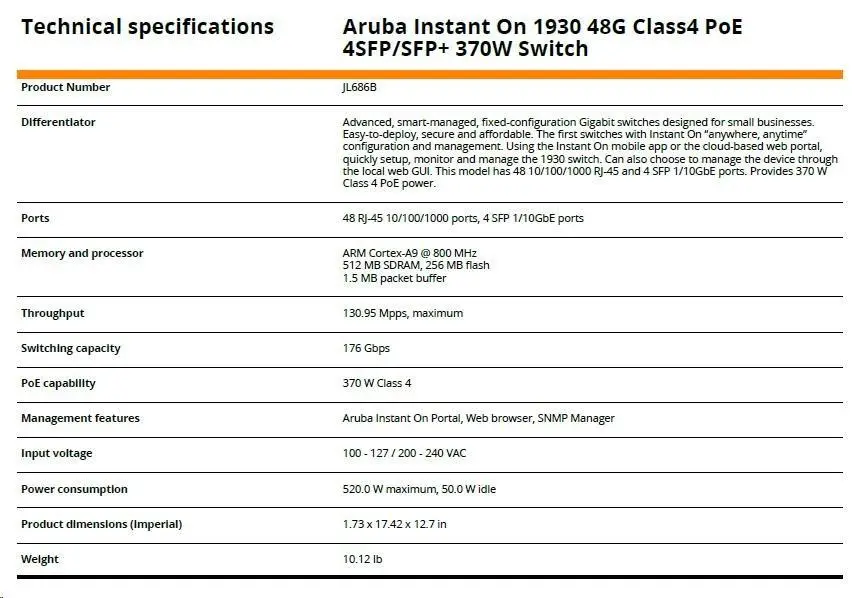

Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch Produktový kód: JL686B <img src="/image/31881062-659fa7b0116b5-1135919-620-620-3.webp"> Porty a sloty 48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports 4 SFP+ 1/10GbE ports <img src="/image/31881062-659fa7b017093-1135920-620-620-3.webp"> Physické charakteristiky Dimensions: 17.42(w) x 12.7(d) x 1.73(h) in Weight: 10.12 lb (4.59 kg) Procesor ARM Cortex-A9 @ 800 MHz Paměť a Flash 512 MB SDRAM 256 MB flash Performance 100 Mb latency: < 4.5 uSec 1000 Mb latency: <2.2 uSec 10000 Mb latency: <1.2 uSec Throughput (Mpps): 130.95 Mpps Capacity: 176 Gbps Environment Operating temperature: 32°F to 104°F (0°C to 40°C) Operating relative humidity: 15% to 95% @ 104°F (40°C) Elektrické charakteristiky Frequency: 50-60 Hz AC voltage: 100 - 127 / 200 - 240 VAC Maximum power rating: 465.6W Idle power: 38.3W PoE power: 370 W Class 4 PoE Bezpečnost UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 Device Management Aruba Instant On Cloud; Web browser; SNMP Manager Montáž Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rackmounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided Transceivers Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A ) Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A) Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A) Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E) <img src="/image/31881062-65f558cd21569-1168793-620-620-3.webp">
