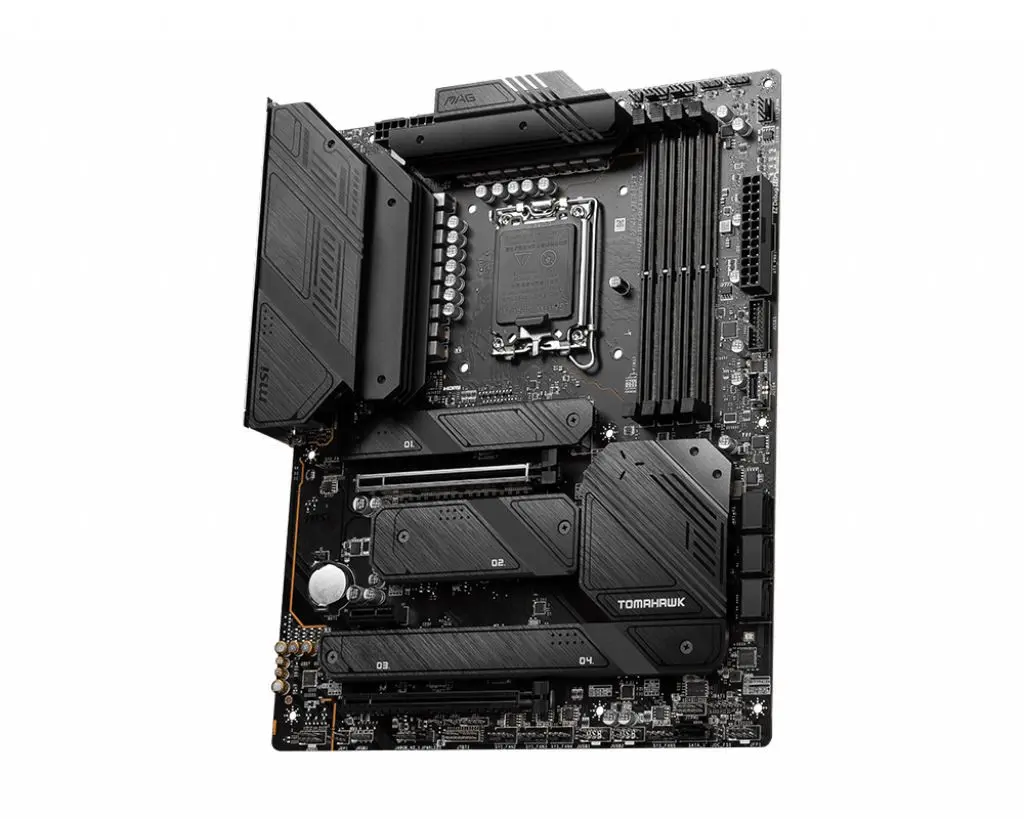

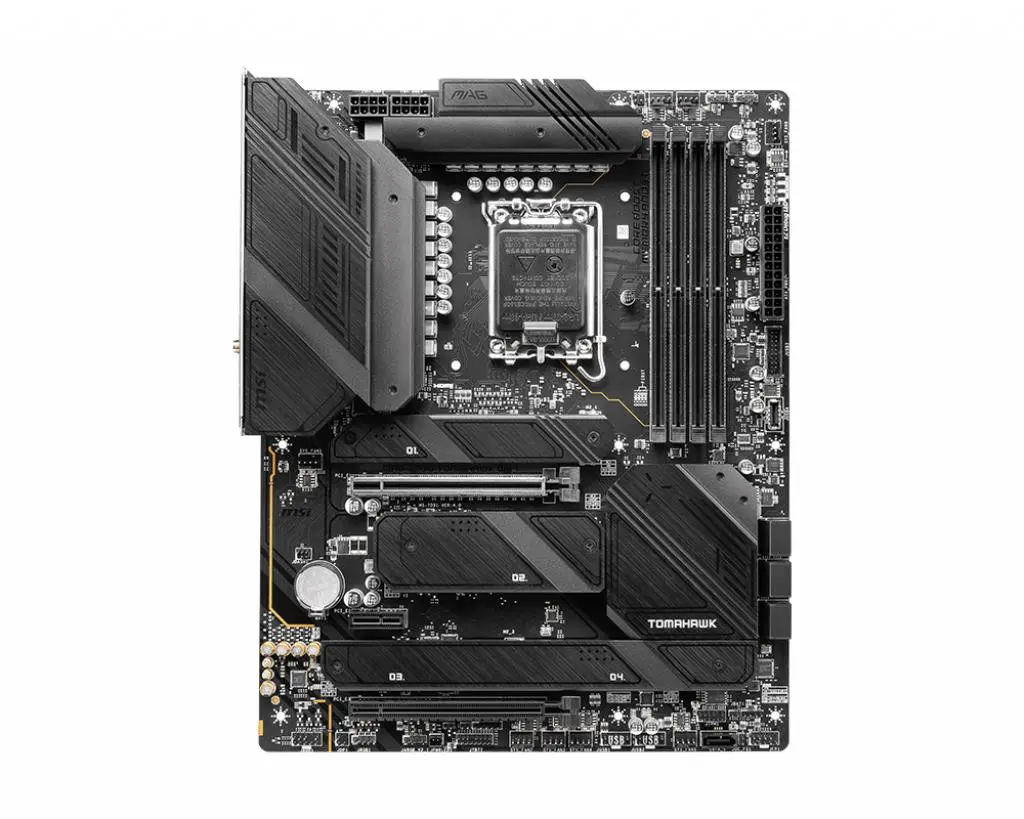

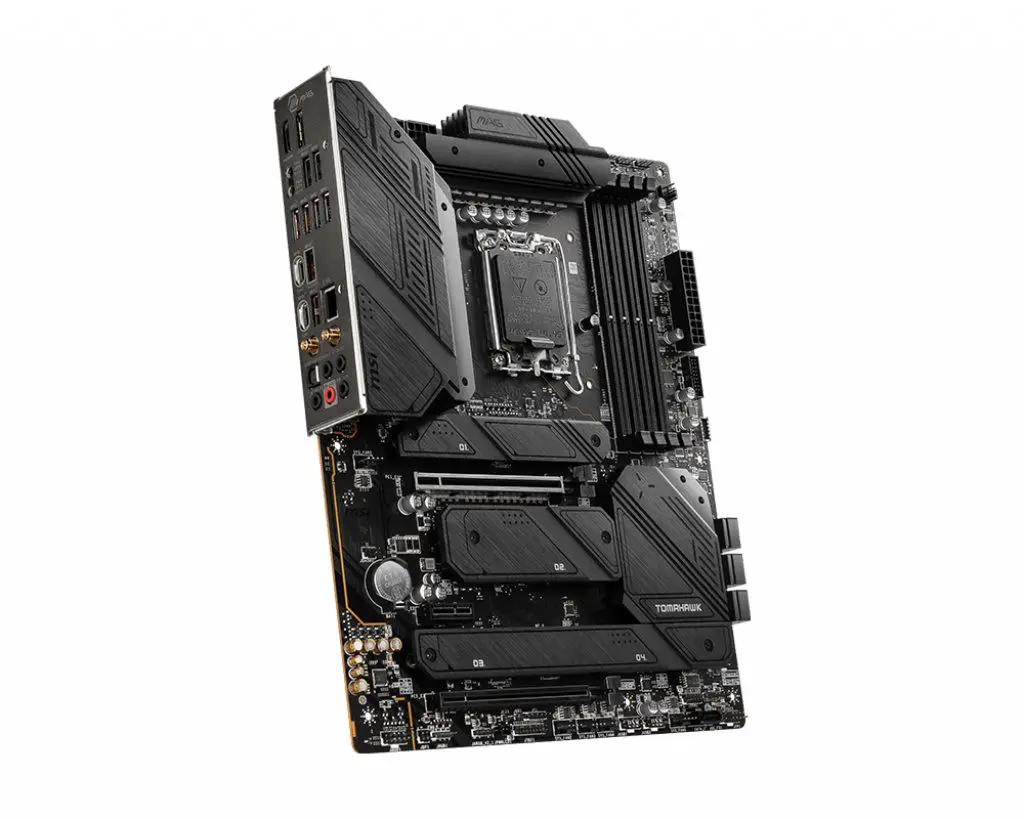

MSI MB Sc LGA1700 MAG Z790 TOMAHAWK WIFI, Intel Z790, 4xDDR5, 1xDP, 1xHDMI, WI-FI, ATX

MAG Z790 TOMAHAWK WIFI Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors Supports DDR5 Memory, up to 7200+(OC) MHz Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material CHIPSET INTEL Z790 CPU SUPPORT Supports 14th/ 13th/ 12th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors MEMORY 4x DDR5, Maximum Memory Capacity 256GBMemory Support 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory ONBOARD GRAPHICS 1x HDMI™1x DisplayPortSupport HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*Support DP 1.4, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. EXPANSION SLOT 2x PCI-E x16 slotSupports x16/x41x PCI-E x1 slotPCI_E1 PCIe 5.0 supports up to x16 (From CPU)PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) STORAGE 4x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devicesM.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices7x SATA 6G port RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices* SATA_A1_A2 do not support RAID function. USB 4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)4x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear) LAN Intel 2.5Gbps LAN WIRELESS / BLUETOOTH Intel Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3**, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. AUDIO Realtek ALC4080 Codec7.1-Channel USB High Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel INTERNAL I/O 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.02x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type C LED FEATURE 4x EZ Debug LED BACK PANEL PORTS DisplayPort 1.4USB 3.2 Gen 1 5Gbps Type-AUSB 3.2 Gen 2 10Gbps Type-A2.5G LAN Port,HD Audio ConnectorsHDMI™ 2.1 PortClear CMOS ButtonFlash BIOS ButtonUSB 3.2 Gen 2 10Gbps Type-CUSB 3.2 Gen 2x2 20Gbps Type-CWi-Fi / Bluetooth AntennaOptical S/PDIF OUT OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit PCB DIMENSION ATX243.84mmx304.8mm
